Medical professional using KnovelMed mobile X-ray in

VX-100: Knovelmed Extremity Compact
X-Ray System

The VX-100 by Knovelmed Plus is a battery-operated rugged versatile handheld compact X-ray system engineered for extremity imaging. Housed in a 413 × 144 × 284 mm enclosure weighing 2.5 kg, it features a rechargeable Li-Ion battery and AC/DC power adapter. Tube voltage adjusts from 70 to 100 kV at a fixed 1.0 mA current, while exposure time ranges from 0.1 to 1.0 seconds via an efficient control panel. A detachable cone ensures precise beam collimation, and a jog-dial interface simplifies parameter selection quickly. Designed for adult, pediatric, and neonatal extremity exams, it delivers diagnostic-quality radiographs wherever mobile radiography is needed.

Patient undergoing X-ray

Compact & Rugged Handheld Design

Measuring 413 × 144 × 284 mm and weighing 2.5 kg, the VX-100 integrates rechargeable Li-Ion power and AC/DC adapter in a robust enclosure. Its IP-rated housing endures extreme clinical demands reliably.

Extremity x-ray

Precise Exposure Control

Adjust tube voltage between 70–100 kV at 1 mA and set exposure times from 0.1 to 1.0 seconds via an intuitive jog-dial interface. Smooth, precise parameter selection guarantees consistently clear, high-quality diagnostic images.

hand x-ray

Diagnostic-Quality Radiography

Specialized extremity imaging for adult, pediatric, and neonatal patients. The VX-100’s detachable collimation cone optimizes beam focus and reduces scatter. Delivers consistently reliable, low-dose, high-contrast radiographs in diverse clinical environments.

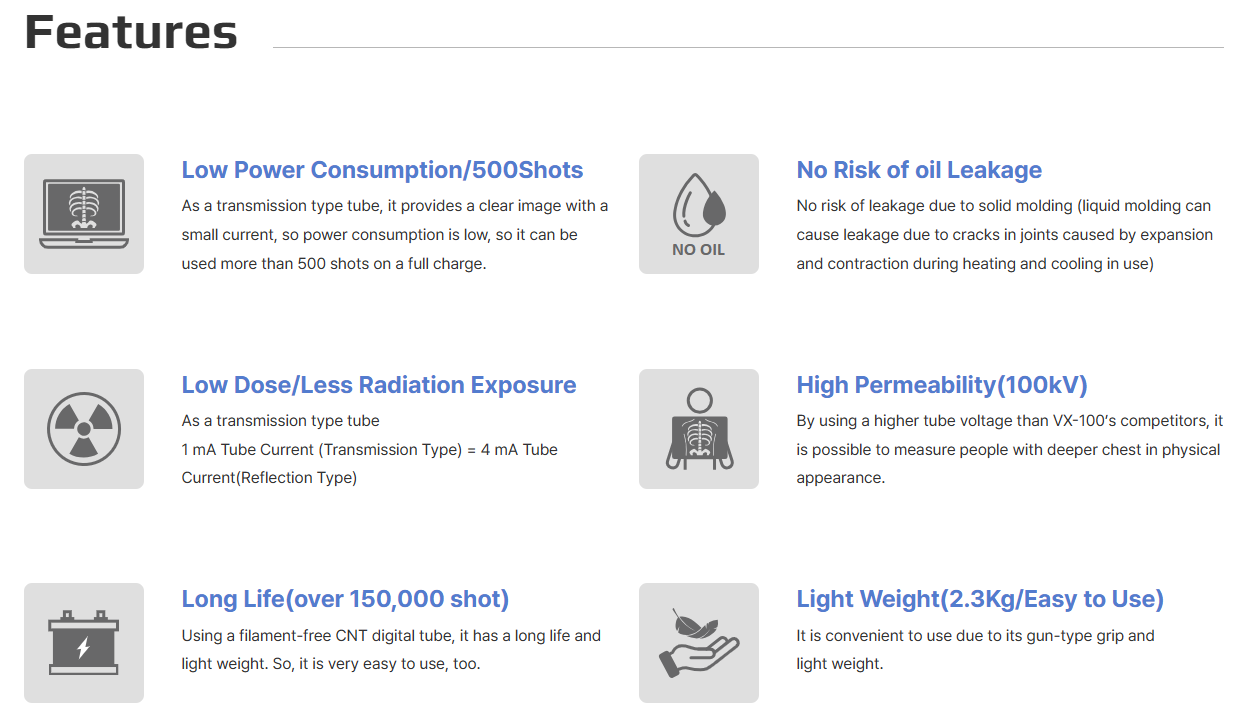

features of portable x-ray

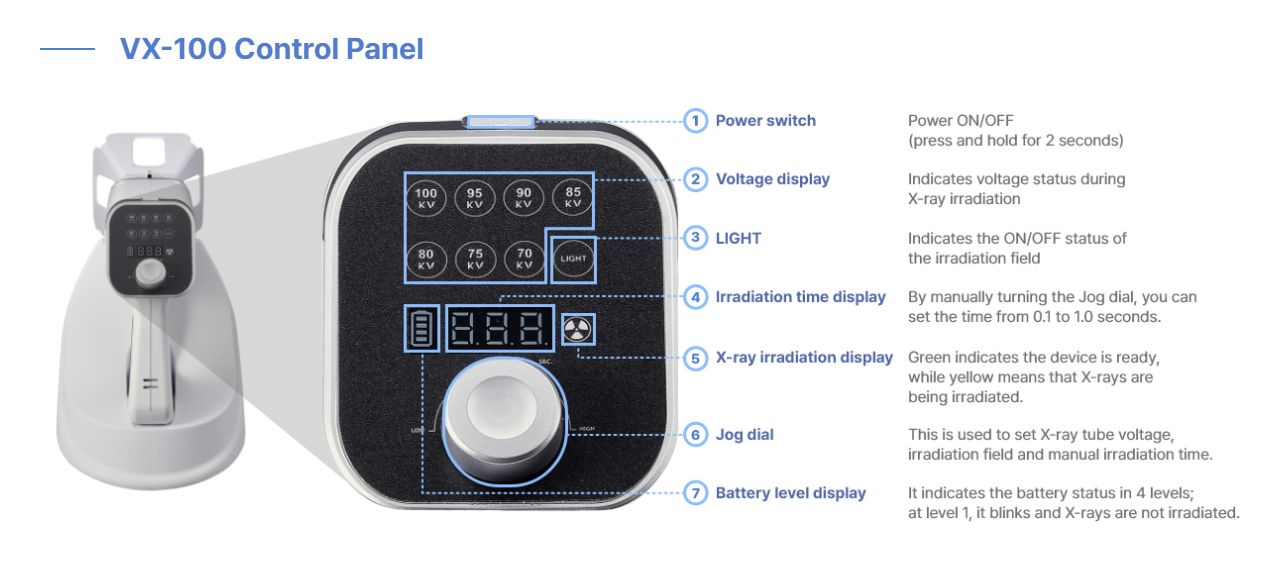

panel of knovelmed portable x-ray

The Specs

specs of knovelmed portable extremities x-ray
sample image

Get in touch with us today!
